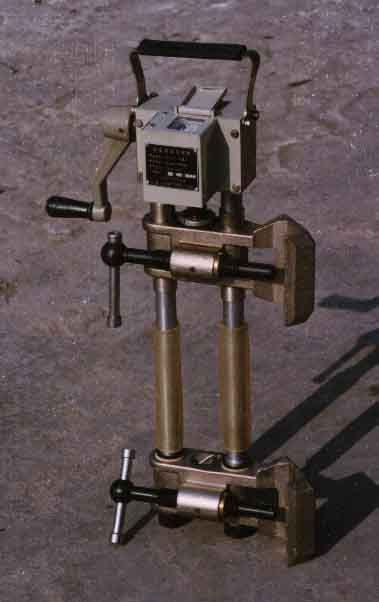

This series of welding machine is classified into two kinds in terms of structure: one is of the integrated structure (the control unit lumps together with the welding power) and the other is of the separate structure (the control unit is separated with the welding power). Welding machine of the separate structure can be used together with general AC welding power or DC welding power. The welding electrode, low weight and easy load, is precisely made and classified into gear type and lever type. It can satisfied the requirements of various consumers.

   This welding machine is the consequence of employing modern electronic technology. The welding process is controlled digitally and sensitively. The arc is formed easily and the welding quality is stabilized and reliable. 100% welding products are qualified. It can spare vertical reinforcing steel and power by 10%-30% or even over 80%.

 It's efficiency is improved more than six times. The welding is processed by dip soldering arc technology, therefore welding work condition is greatly improved: no arc light, no high temperature and no dust.

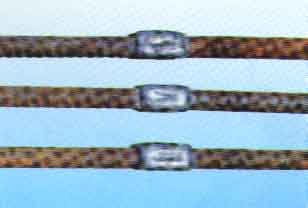

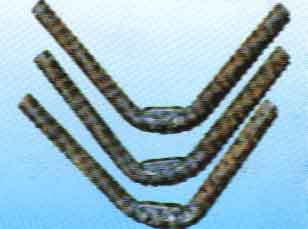

   The welding machine can butt weld steel bar of Grade I, II and III whose diameters ranged from 14mm to 40mm. This welding machine can also be used as general welding machines. It can replace the current traditional welding technology.

Model

Specification
